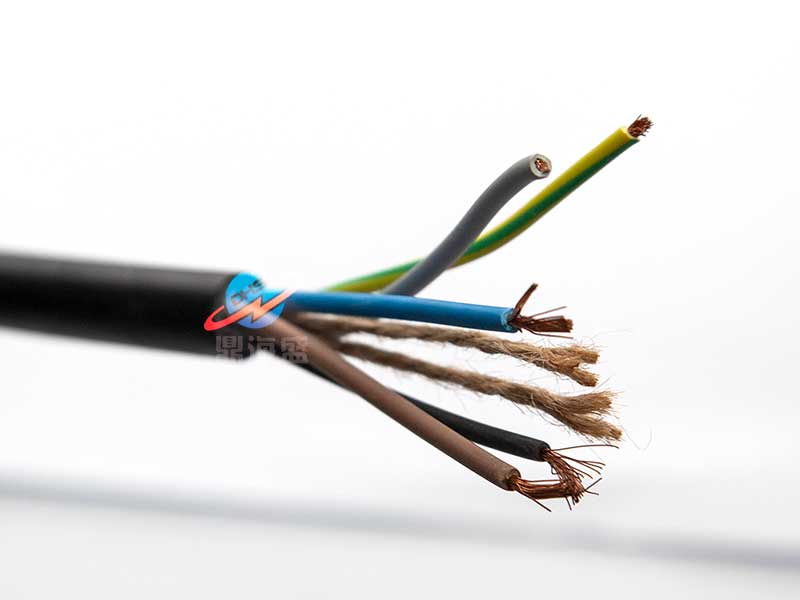

Suspended Platform Special Heavy Rubber Flexible Cable
Product Specification: Heavy-duty Rubber-sheathed Flexible Cable for Suspended Platform
This product is a special rubber-sheathed flexible cable for construction suspended working platforms. Adopting Class 5 multi-strand flexible copper conductor, rubber insulation and heavy-duty rubber sheath, it features high flexibility, bending resistance, drag resistance, abrasion resistance and weather resistance. Specially designed for integrated power supply and control signal transmission of suspended platforms, suitable for various construction suspended platforms, hoists and other mobile equipment.
单芯线芯基础参数表 Single Core Basic Parameters
| 标称截面 Nominal Section (mm²) | 近似AWG | 导体结构 No./Wire Dia.(mm) | 绝缘厚度 Insulation Thickness (mm) | 绝缘线芯外径 Insulated Core OD (mm) | 20℃最大导体电阻 Max DC Resistance (Ω/km) |
|---|---|---|---|---|---|
| 1.0 | 17AWG | 32/0.20 | 0.6 | 2.8 | 19.50 |
| 1.5 | 16AWG | 30/0.25 | 0.8 | 3.15 | 13.30 |
| 2.5 | 14AWG | 49/0.25 | 0.9 | 4.40 | 7.98 |
| 4.0 | 12AWG | 56/0.30 | 1.0 | 5.00 | 4.95 |
| 6.0 | 10AWG | 84/0.30 | 1.0 | 5.40 | 3.30 |
| 10 | 8AWG | 84/0.40 | 1.2 | 6.80 | 1.91 |
| 16 | 6AWG | 126/0.40 | 1.2 | 7.20 | 1.21 |
| 25 | 4AWG | 196/0.40 | 1.4 | 8.60 | 0.780 |
| 35 | 2AWG | 276/0.40 | 1.4 | 9.40 | 0.554 |
| 50 | 1/0AWG | 396/0.40 | 1.6 | 10.80 | 0.386 |
